We are a premium auto parts manufacturer and supplier. We specialize in sale priced Transmissions, Transfer Cases, Engines and more. Porsche 722.6 Tiptronic Upgraded Performance Transmission Rebuild Kit (A9731, G9731) IPT now offers High Performance Master Rebuild Kits for 722.6, These kits include all necessary seals, gaskets, filters, shifting bands, friction clutches and reaction plates that are required when rebuilding transmissions. The 722.6 transmission also known as the NAG1 is a speed automatic transmission that was developed in 1996. The 722.6 transmission contains five forward gears and two reverse gears. The 722.6 transmission's high torque capacity allows to remain a great pairing for Sprinters, Jeep Wranglers, commercial vehicles and V12 four-cylinder engines. English voice acting Reset Transmission - to Put a Universal Fuel Pump on Mercedes - https://youtu.be/8JNZVIBi.

  1. 722.6 Transmission Fastest Gear Shift Speed
  2. 722.6 Transmission Parts
  3. 722.6 Transmission Conductor Plate
  4. See Full List On Sportlichleicht.com
5G-Tronic
Overview
ManufacturerDaimler AG
Chrysler Group LLC
Also calledMercedes-Benz 5-gear Automatic transmission
Production1996-Today
Body and chassis
Class5-speed longitudinalautomatic transmission
Chronology
PredecessorMercedes-Benz 4G-Tronic transmission
SuccessorMercedes-Benz 7G-Tronic transmission

5G-Tronic is Mercedes-Benz's trademark name for its five-speed automatic transmission, starting off with the W5A 580 and W5A 330 (Wandler-5-Gang-Automatik bis 580 oder 330 Nm Eingangsdrehmoment; converter-5-gear-automatic with 428 or 243 ft·lb maximum input torque; type 722.6) as core models.

Abstract[edit]

The 5G-Tronic (model W5A 330 and W5A 580 · type 722.6) is an electronically shifted 5-speed overdrive automatic transmission with torque converter lock-up (typically in gears 3, 4 and 5) and 2-speed for reverse. In all applications this transmission is identified as the New Automatic Gearbox Generation One, or NAG1.

722.6 transmission diagram

It replaced the older 4-speed 4G-Tronic transmission-family and its 5-speed derivative, and was replaced by the significantly more complex and cost-intensive 7-speed[a] Mercedes-Benz 7G-Tronic (model W7A 700 · type 722.9) transmission with 11 main components,[b] introduced in 2003. Due to its high torque capacity (up to 1000 Nm) and lower cost, it was still retained for turbocharged V12 engines, four-cylinder applications and commercial vehicles for almost a decade. It is still being built for niche applications (e.g. Sprinter with petrol/CNG M111 engine, Jeep Wrangler, etc.).

Specifications[edit]

722.6

Basic concept[edit]

Technical and economic progress is reflected in 5 forward gears[c] out of 9 main components,[d] compared to 5 forward gears[e] out of 11 main components[f] in the direct predecessor... It is fully electronic controlled and equipped with a torque converter lock-up.

Gear ratios[edit]

Gear Teeth and RatiosPlanetary Gearset: TeethCountTotalAvg.
Model

Type

Version

First Delivery

Sun 1

Ring 1

Sun 2

Ring 2

Sun 3

Ring 3

Brakes

Clutches

Ratio

Span

Gear

Step

Gear12345R 1R 2
W5A 330

722.6

330 Nm · 243 lb·ft

1996[1][2]

50

79

34

70

54

87

3

3

4.73451.4751
Ratio3.93192.40791.48571.00000.8305- 3.1002- 1.8986
W5A 580

722.6

580 Nm · 428 lb·ft

1996[1][2]

50

78

30

74

50

90

3

3

4.31521.4413
Ratio3.58762.18621.40541.00000.8314- 3.1605- 1.9259
W5A 330

722.6

330 Nm · 243 lb·ft

Chrysler · 2004

58

92

34

70

65

103

3

3

4.74251.4757
Ratio3.95102.42331.48571.00000.8331- 3.1473- 1.9303
W5A 580

722.6

580 Nm · 428 lb·ft

Chrysler · 2004

58

90

30

74

60

108

3

3

4.32661.4422
Ratio3.59512.18621.40541.00000.8309- 3.1671- 1.9259

Special operating modes[edit]

Winter Mode[edit]

Activated by a toggle switch, Winter mode sets the gearbox to start off in 2nd gear, both in Drive and Reverse. This is designed to reduce wheelspin on icy surfaces.

With Jaguar XJR applications the switch is labelled 'Sport'. In regular driving mode the gearbox starts off in 2nd gear, and will only engage 1st gear when triggered via the kickdown switch. While 'Sport' mode is enabled the gearbox will always start off in 1st gear.

Speedshift (2001-)[edit]

Speedshift is a performance feature set for the Mercedes-Benz transmissions which includes manual mode and active downshifting. When cornering at high speed, the transmission maintains the same gear above a certain lateral acceleration level. It can also automatically downshift before overtaking.

It was first used in 2001 Mercedes-Benz C 32 AMG[3] and 2001 Mercedes-Benz SLK 32 AMG.[4]

AMG Speedshift (2002-)[edit]

A version with mechanical lock-up of the torque converter from first gear and steering-wheel-mounted shifter. AMG Speedshift is also used in 7G-Tronic transmission.[5]

722.6 Transmission

It was first used in 2002 Mercedes-Benz E 55 AMG, S 55 AMG, C55, CL 55 AMG.[6]

AMG Speedshift R[edit]

A version used in Mercedes-Benz SLR McLaren. It includes three manual modes.

Applications[edit]

Mercedes models[edit]

Mercedes S-Class[edit]

  • 1996–1998 Mercedes-Benz W140
  • 1999–2005 Mercedes-Benz W220
  • 2006–2013 Mercedes-Benz W221 (V12 models only)

Mercedes CL[edit]

  • 1996–1998 Mercedes-Benz C140
  • 2000–2006 Mercedes-Benz C215
  • 2007–2014 Mercedes-Benz C216 (V12 Models only)

Mercedes E-Class[edit]

722.6 Transmission Fastest Gear Shift Speed

  • 1996–2002 Mercedes-Benz W210 (all models except some early 1996 cars)
  • 2002–2006 Mercedes-Benz W211 (all models except 2004-2005 E500)
  • 2007–2009 Mercedes-Benz W211 (4-cyl and 4-matic only)
  • 2009–2011 Mercedes-Benz W212 (4-cyl models only)

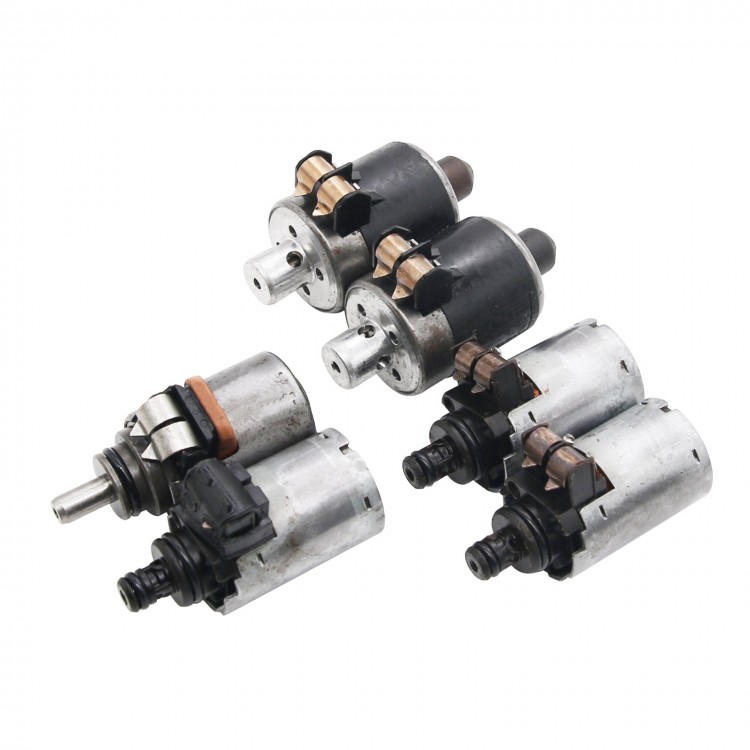

722.6 Transmission Parts

Mercedes C-Class[edit]

  • 1996–2000 Mercedes-Benz W202
  • 2001–2005 Mercedes-Benz W203 (all models)
  • 2006–2007 Mercedes-Benz W203 (4-cyl and 4-matic models only)
  • 2007–2011 Mercedes-Benz W204 (4-cyl models only)

Mercedes CLK[edit]

  • 1998–2002 Mercedes-Benz W208
  • 2003–2005 Mercedes-Benz W209 (all models except 2005 CLK 500)
  • 2006–2009 Mercedes-Benz W209 (4-cyl and CLK 55AMG only)

Mercedes ML[edit]

  • 1998–2005 Mercedes-Benz W163

Mercedes G-wagon[edit]

  • 1996–2006 Mercedes-Benz W463 (all models)
  • 2007–2012 Mercedes-Benz W463 (G55 AMG only)

Mercedes SLK[edit]

  • 1997–2003 Mercedes-Benz R170
  • 2004–2010 Mercedes-Benz R171 (4-cyl models only)

Mercedes SL[edit]

  • 1996–2001 Mercedes-Benz R129
  • 2001–2004 Mercedes-Benz R230 (all models)
  • 2005–2006 Mercedes-Benz R230 (all models except SL500)
  • 2007–2011 Mercedes-Benz R230 (SL 55AMG and V12 models only)

Mercedes SLR[edit]

  • 2005–2009 Mercedes-Benz W199

Maybach[edit]

  • 2002–2013 Maybach 57 and 62

Non Mercedes-Benz models[edit]

Jeep[edit]

  • 2002–2012 Jeep Grand Cherokee[7] (02-04 WG Diesel W5J400, 05-10 WK V6, WK V8, WH V6 3.0 Diesel export only Steyr W5A580)
  • 2006–2010 Jeep Commander XK (3.7 gas) XH (3.0 diesel - export)
  • 2012–2018 Jeep Wrangler (JK)[8]

Dodge[edit]

  • 2005–2008 Dodge Magnum (AWD, RT, SRT8 only)
  • 2006–Today Dodge Charger (R/T, SRT8; 5.7 & 6.1L) (2006-2007 3.5L V6 HO) (2015+ Police Only)
  • 2007–2011 Dodge Nitro (4.0L Models only)
  • 2009–2014 Dodge Challenger
  • 2011–2012 Dodge Durango (V6 Models only)
  • 2003–2006 Dodge Sprinter Vans ( N. America)

Chrysler[edit]

722.6 Transmission
  • 2004–2008 Chrysler Crossfire, all models[9]
  • 2005–2014 Chrysler 300

Jaguar[edit]

  • 1998–2003 Jaguar X308 (Supercharged models only)
  • 1998–2002 Jaguar XK (X100) (Supercharged models only)

Ssangyong[edit]

  • 1998–2014 Ssangyong Chairman H
  • 2004–2017 Ssangyong Rexton
  • 2005–2017 Ssangyong Rodius
  • 2006–Today Ssangyong Kyron
  • 2014–Today Ssangyong Actyon sports

Porsche[edit]

  • 1997–2006 Porsche 911

Freightliner[edit]

  • 2001-2007 Freightliner Sprinter Vans (USA)
